3 Flutes HSS Chamfering Countersink Drill bitl With 60 And 90 Degree
Countersink Drill
● Drill Angle: 90°
● Flute: 3
● Material: HSS
● Standard: DIN 335C
| D | d1 | b | L1 | L | HSS | HSS-TiN |
| 4.3 | 1.3 | 4 | 28 | 40 | 660-3598 | 660-3637 |
| 4.8 | 1.5 | 4 | 28 | 40 | 660-3599 | 660-3638 |
| 5 | 1.5 | 4 | 28 | 40 | 660-3600 | 660-3639 |
| 5.3 | 1.5 | 4 | 28 | 40 | 660-3601 | 660-3640 |
| 5.6 | 1.5 | 5 | 28 | 45 | 660-3602 | 660-3641 |
| 5.8 | 1.5 | 5 | 28 | 45 | 660-3603 | 660-3642 |
| 6 | 1.5 | 5 | 28 | 45 | 660-3604 | 660-3643 |
| 6.3 | 1.5 | 5 | 28 | 45 | 660-3605 | 660-3644 |
| 7 | 1.8 | 6 | 36 | 50 | 660-3606 | 660-3645 |
| 7.3 | 1.8 | 6 | 36 | 50 | 660-3607 | 660-3646 |
| 8 | 2 | 6 | 36 | 50 | 660-3608 | 660-3647 |
| 8.3 | 2 | 6 | 36 | 50 | 660-3609 | 660-3648 |
| 9.4 | 2.2 | 6 | 36 | 50 | 660-3610 | 660-3649 |
| 10 | 2.5 | 6 | 36 | 50 | 660-3611 | 660-3650 |
| 10.4 | 2.5 | 6 | 36 | 50 | 660-3612 | 660-3651 |
| 11.5 | 2.5 | 8 | 36 | 56 | 660-3613 | 660-3652 |
| 12.4 | 2.5 | 8 | 36 | 56 | 660-3614 | 660-3653 |
| 13.4 | 2.9 | 8 | 36 | 56 | 660-3615 | 660-3654 |
| 14.4 | 3 | 8 | 40 | 56 | 660-3616 | 660-3655 |
| 15 | 3.2 | 10 | 40 | 60 | 660-3617 | 660-3656 |
| 16 | 3.2 | 6 | 40 | 60 | 660-3618 | 660-3657 |
| 16.5 | 3.2 | 8 | 40 | 60 | 660-3619 | 660-3658 |
| 16.5 | 3.2 | 10 | 40 | 60 | 660-3620 | 660-3659 |
| 19 | 3.5 | 10 | 40 | 63 | 660-3621 | 660-3660 |
| 20.5 | 3.5 | 8 | 40 | 63 | 660-3622 | 660-3661 |
| 20.5 | 3.5 | 10 | 40 | 63 | 660-3623 | 660-3662 |
| 23 | 3.8 | 10 | 40 | 67 | 660-3624 | 660-3663 |
| 25 | 3.8 | 8 | 40 | 67 | 660-3625 | 660-3664 |
| 25 | 3.8 | 10 | 40 | 67 | 660-3626 | 660-3665 |
| 25 | 3.8 | 12 | 40 | 67 | 660-3627 | 660-3666 |
| 26 | 3.8 | 10 | 40 | 67 | 660-3628 | 660-3667 |
| 28 | 4 | 12 | 45 | 71 | 660-3629 | 660-3668 |
| 30 | 4.2 | 12 | 45 | 71 | 660-3630 | 660-3669 |
| 31 | 4.2 | 12 | 45 | 71 | 660-3631 | 660-3670 |
| 32 | 4.5 | 12 | 45 | 78 | 660-3632 | 660-3671 |
| 34 | 4.5 | 12 | 45 | 78 | 660-3633 | 660-3672 |
| 35 | 4.8 | 12 | 45 | 78 | 660-3634 | 660-3673 |
| 37 | 4.8 | 15 | 45 | 85 | 660-3635 | 660-3674 |
| 40 | 10 | 15 | 50 | 89 | 660-3636 | 660-3675 |
Metal Part Finishing

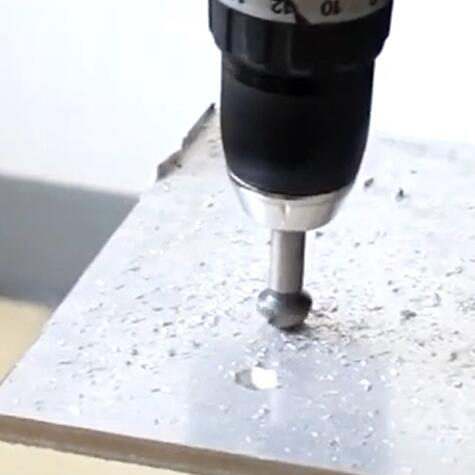

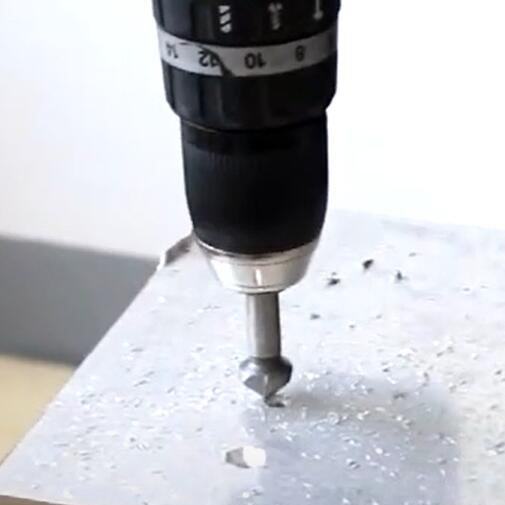

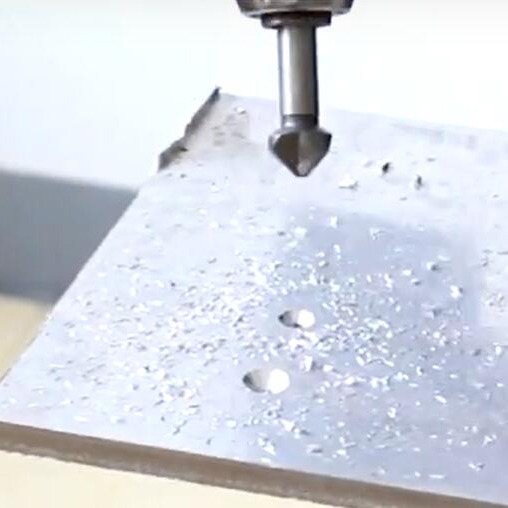

The 3 Flutes HSS Chamfering Countersink Drill with 90 degrees is particularly useful in a machine shop setting. Imagine a scenario where a team is working on a custom motorcycle build. They need to ensure that all metal parts not only fit perfectly but also have a smooth, professional finish.
Custom Metal Fabrication: As they fabricate metal brackets and frames, the precise angles of 90 degrees offered by this drill are used for chamfering and deburring holes. This process removes any sharp edges, enhancing both the safety and aesthetic of the parts.
Component Flush Fitting
Precision Engineering: In areas where components must sit flush, the countersink drill ensures that screw heads are perfectly aligned with the surface. This is crucial for aerodynamic parts on the motorcycle.
Woodworking Detailing
Woodworking Applications: The team also uses the drill on wooden parts, like custom handle grips. The versatility of the drill allows for smooth countersinks in wood, ensuring that the screws fit neatly without splitting the material.
Decorative Finishing
Finishing Touches: For the final touches, like custom-made decorative elements on the bike, the countersink drill adds a professional finish, chamfering edges for a sleek look and smooth touch.
In this scenario, the countersink drill’s ease of use, compatibility with various materials, and precision make it an invaluable tool in creating a high-quality, custom-built motorcycle.
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery
Package Content
1 x Countersink Drill
1 x Protective Case
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
