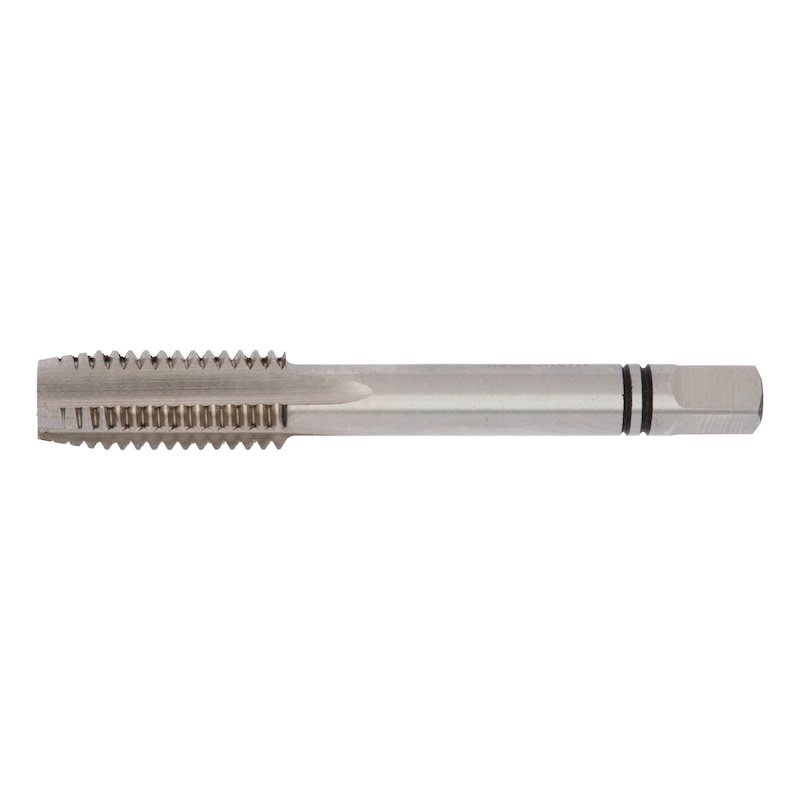

HSS 3PCS DIN352 Hand Tap Set With Taper And PLUG Or Bottoming Tap
Hand Tap
● Thread Angle: 60°
● Standard: DIN352
● Material: HSS
● Contain: Taper, Plug, Bottoming Tap
● Flute: Staight
| SIZE (d1) |
THREAD LENGTH(l2) |
TOTAL LENGTH(l1) |
SHANK DIA.(d2) |
SQUARE (a) |
TAPER | PLUG | BOTTOMING | 3PC/SET |
| M2×0.4 | 8 | 36 | 2.8 | 2.1 | 660-3754 | 660-3770 | 660-3786 | 660-3802 |
| M3×0.5 | 10 | 40 | 3.5 | 2.7 | 660-3755 | 660-3771 | 660-3787 | 660-3803 |
| M4×0.7 | 12 | 45 | 4.5 | 3.4 | 660-3756 | 660-3772 | 660-3788 | 660-3804 |
| M5×0.8 | 14 | 50 | 6 | 4.9 | 660-3757 | 660-3773 | 660-3789 | 660-3805 |
| M6×1 | 16 | 56 | 6 | 4.9 | 660-3758 | 660-3774 | 660-3790 | 660-3806 |
| M8×1.25 | 20 | 63 | 6 | 4.9 | 660-3759 | 660-3775 | 660-3791 | 660-3807 |
| M10×1.5 | 22 | 70 | 7 | 5.5 | 660-3760 | 660-3776 | 660-3792 | 660-3808 |
| M12×1.75 | 24 | 75 | 9 | 7 | 660-3761 | 660-3777 | 660-3793 | 660-3809 |
| M14×2 | 26 | 80 | 11 | 9 | 660-3762 | 660-3778 | 660-3794 | 660-3810 |
| M16×2 | 27 | 80 | 12 | 9 | 660-3763 | 660-3779 | 660-3795 | 660-3811 |
| M18×2.5 | 30 | 95 | 14 | 11 | 660-3764 | 660-3780 | 660-3796 | 660-3812 |
| M20×2.5 | 32 | 95 | 16 | 12 | 660-3765 | 660-3781 | 660-3797 | 660-3813 |
| M22×2.5 | 32 | 100 | 18 | 14.5 | 660-3766 | 660-3782 | 660-3798 | 660-3814 |
| M24×3 | 34 | 110 | 18 | 14.5 | 660-3767 | 660-3783 | 660-3799 | 660-3815 |
| M27×3 | 36 | 110 | 20 | 16 | 660-3768 | 660-3784 | 660-3800 | 660-3816 |
| M30×3.5 | 40 | 125 | 22 | 18 | 660-3769 | 660-3785 | 660-3801 | 660-3817 |

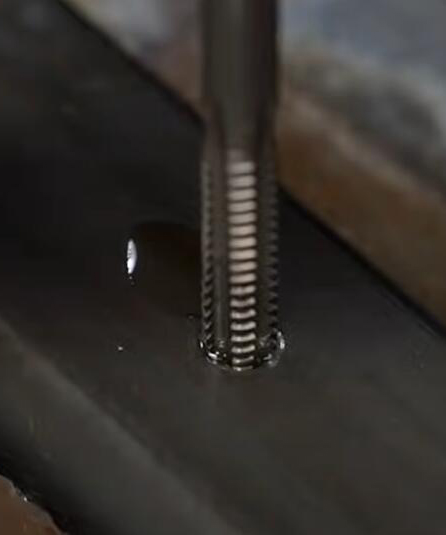

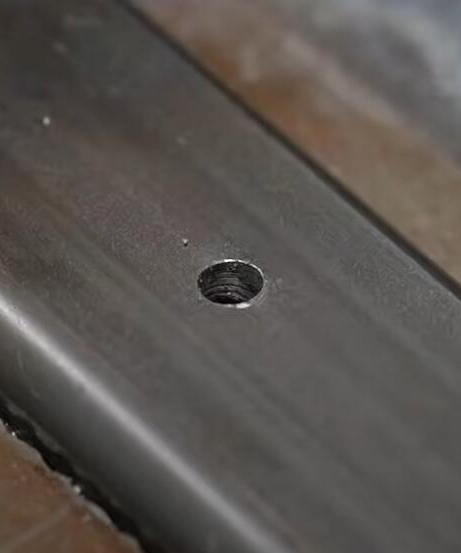

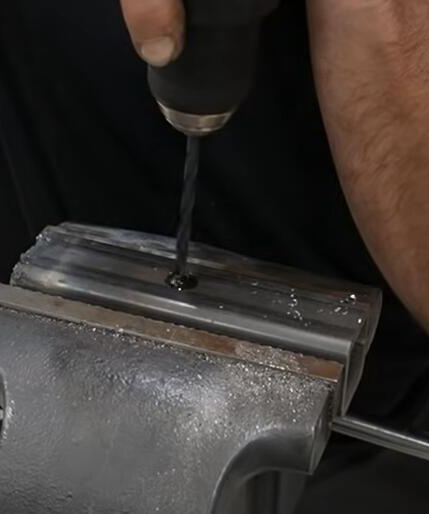

Manual Threading in Metalworking
TThe HSS 3pcs DIN352 Hand Tap Set, which includes Taper, Plug, and Bottoming Taps, is an essential tool for creating precise internal threads in metalworking applications. This set is particularly useful for tasks requiring manual threading in various metals, such as steel, aluminum, and brass.

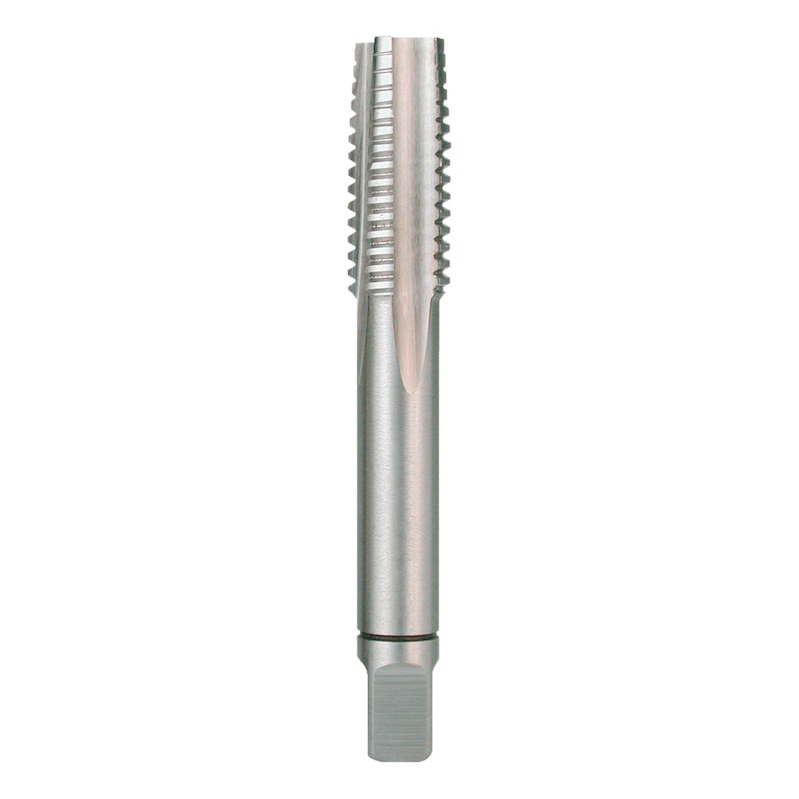

Taper Tap for Easy Starting
Taper Tap: Ideal for starting the threading process, its tapered design allows for easy starting and alignment, reducing the risk of tap breakage.

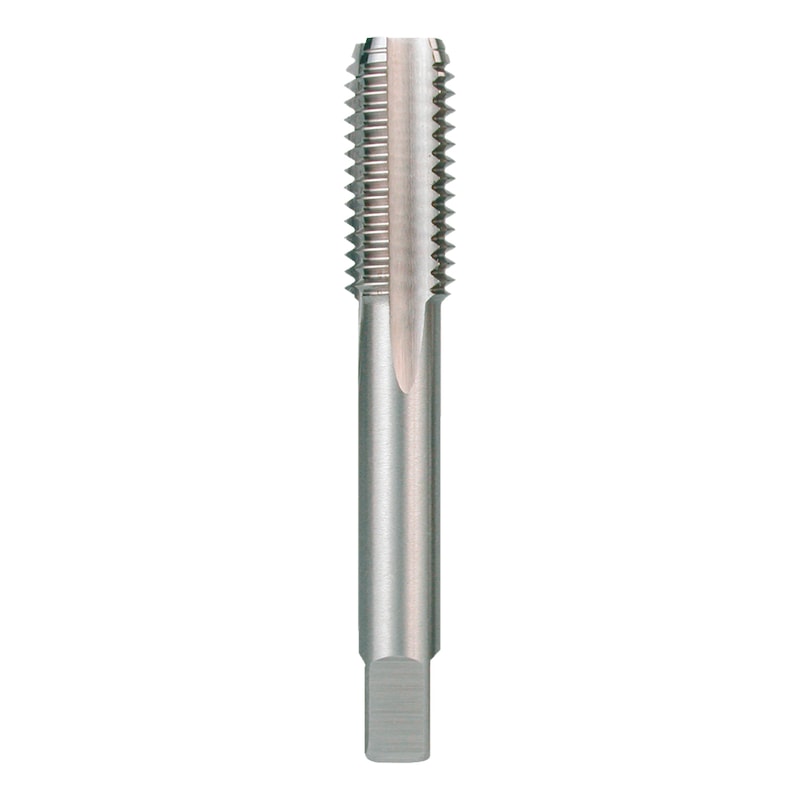

Plug Tap for Deeper Threading
Plug Tap: Designed to follow the taper tap, it has a less pronounced taper, suitable for threading deeper holes, especially in through-holes.
Bottoming Tap for Blind Holes
Bottoming Tap: With its minimal taper, this tap is perfect for threading the bottom of blind holes, completing the threading process initiated by the taper and plug taps.
Durability and Precision
Crafted from high-speed steel (HSS), these hand taps offer durability and can withstand the demands of both manual and machine-driven operations. Their adherence to the DIN352 standard ensures quality and precision, making them a reliable choice for various applications, including metalworking, manufacturing, and maintenance and repair tasks. This versatility, combined with their durability, makes the HSS 3pcs DIN352 Hand Tap Set a valuable addition to any tool collection, be it for professional or DIY projects.
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery
Package Content
1 x HSS DIN352 Hand Tap
1 x Protective Case
