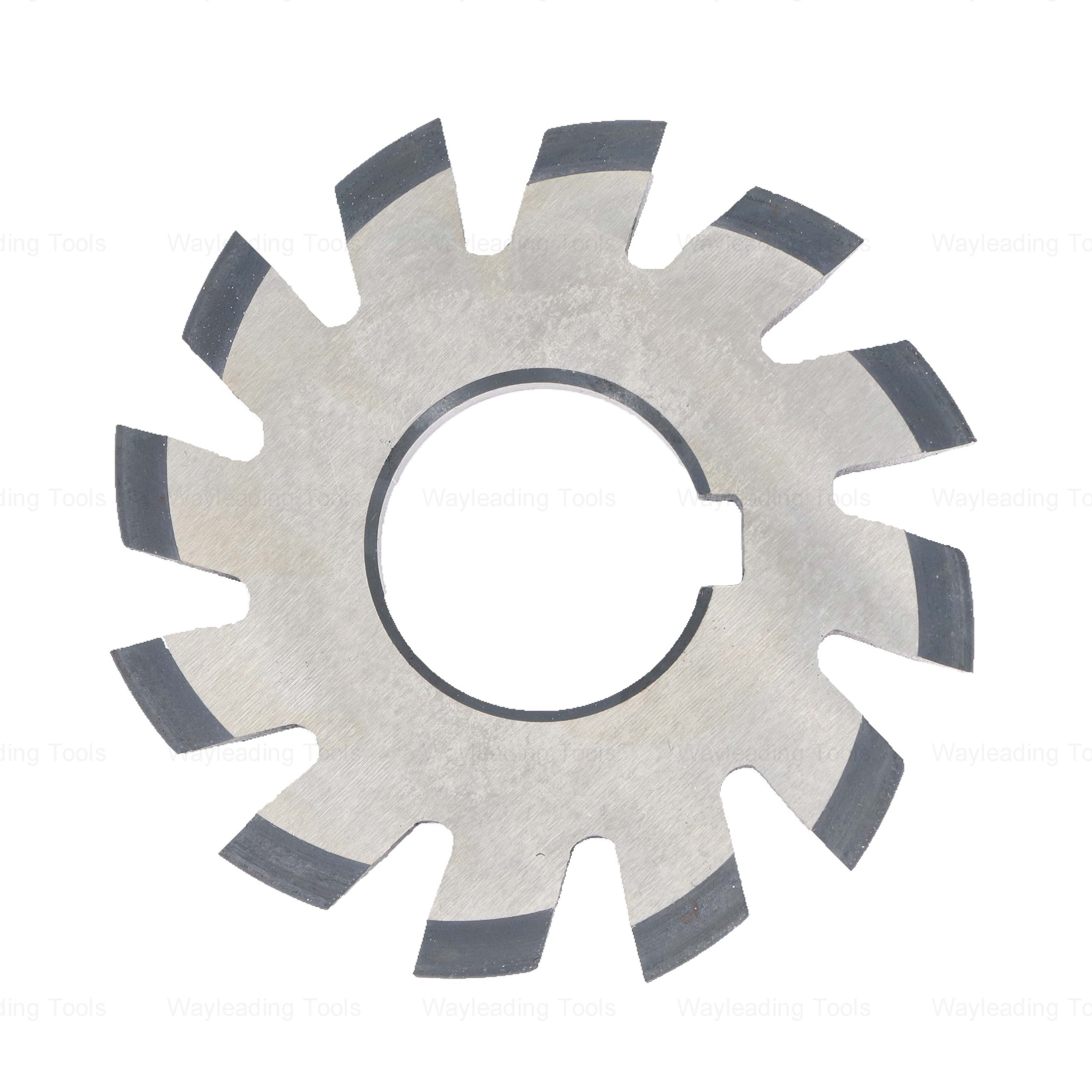

» HSS Module Involute Gear Cutters With PA20 And PA14-1/2

Functions For Gear Cutter:

1. Gear Machining: Gear cutters are used to mill the profiles of gears, ensuring precise dimensions and shapes. This includes various types of gears such as spur gears, helical gears, and worm gears.
2. Gear Truing: During manufacturing, gear cutters are also utilized to true or repair the surfaces of gears to meet design requirements.
3. Precision: Gear cutters ensure that gears achieve high precision in dimensions and geometric shapes, crucial for smooth operation and performance of transmission systems.
Processing Efficiency: Using gear cutters can achieve efficient gear machining, improving production efficiency and reducing manufacturing costs.
4. Versatility: Gear cutters can be used not only for machining metal gears but also for processing gears made of materials such as plastic and wood, offering a wide range of applications.

Usage and Precautions For Gear Cutter:

Selection of Cutter: Choose the appropriate gear cutter based on the type and material of the gear to be machined, as well as the desired specifications and tolerances.
Setup: Securely mount the gear cutter on the milling machine spindle, ensuring proper alignment and concentricity.
Workpiece Fixturing: Securely clamp the workpiece on the milling machine table, ensuring stability and proper positioning for accurate machining.
Cutting Parameters: Set the cutting parameters such as speed, feed rate, and depth of cut according to the material and size of the gear, as well as the capabilities of the milling machine.
Machining Process: Carefully execute the milling process, ensuring smooth and steady movement of the milling cutter across the workpiece surface to achieve the desired gear profile and dimensions.
Coolant Use: Depending on the material being machined, use coolant or lubricant to dissipate heat and improve chip evacuation, ensuring better cutting performance and prolonging tool life.

Precautions:

Always wear appropriate safety gear such as goggles, gloves, and ear protection to prevent injuries from flying chips, noise, and other hazards.
Tool Inspection: Regularly inspect the gear cutter for signs of wear, damage, or dullness. Replace worn or damaged cutters promptly to maintain machining quality and prevent accidents.
Machine Maintenance: Keep the milling machine in good working condition by performing regular maintenance tasks such as cleaning, lubrication, and calibration, ensuring optimal performance and safety.
Tool Handling: Handle gear cutters with care to avoid dropping or mishandling, which can lead to damage or injury. Use proper lifting techniques and storage methods to maintain tool integrity.
Chip Management: Properly manage chips and swarf generated during machining to prevent accumulation and interference with the cutting process or machine components.
Operator Training: Ensure that operators are adequately trained and familiar with the operation of gear cutters, including safety procedures and proper machining techniques.
