HSS Metric Taper Shank Twit Drills For Metal Cutting Of High Precision - Dezhou Zhonghuan Precision Machinery Co., Ltd
Taper Shank Twit Drills
We are pleased that you are interested in our taper shank twist drill. The Morse taper twist drill stands out with its unique handle design, offering both secure fixation and stable rotation.
| SIZE H8 |
MORSE TAPER |
FLUTE LENGTH |
TOTAL LENGTH |
ROLLED | MILLED | FULLY GROUND | ||
| HSS | HSS | HSSCO5 | HSS | HSSCO5 | ||||
| 8.00 | 1 | 75 | 156 | 660-1055 | 660-1139 | 660-1223 | 660-1307 | 660-1391 |
| 8.50 | 1 | 75 | 156 | 660-1056 | 660-1140 | 660-1224 | 660-1308 | 660-1392 |
| 9.00 | 1 | 81 | 162 | 660-1057 | 660-1141 | 660-1225 | 660-1309 | 660-1393 |
| 9.50 | 1 | 81 | 162 | 660-1058 | 660-1142 | 660-1226 | 660-1310 | 660-1394 |
| 10.00 | 1 | 87 | 168 | 660-1059 | 660-1143 | 660-1227 | 660-1311 | 660-1395 |
| 10.50 | 1 | 87 | 168 | 660-1060 | 660-1144 | 660-1228 | 660-1312 | 660-1396 |
| 11.00 | 1 | 94 | 175 | 660-1061 | 660-1145 | 660-1229 | 660-1313 | 660-1397 |
| 11.50 | 1 | 94 | 175 | 660-1062 | 660-1146 | 660-1230 | 660-1314 | 660-1398 |
| 12.00 | 1 | 101 | 182 | 660-1063 | 660-1147 | 660-1231 | 660-1315 | 660-1399 |
| 12.50 | 1 | 101 | 182 | 660-1064 | 660-1148 | 660-1232 | 660-1316 | 660-1400 |
| 13.00 | 1 | 101 | 182 | 660-1065 | 660-1149 | 660-1233 | 660-1317 | 660-1401 |
| 13.50 | 1 | 108 | 189 | 660-1066 | 660-1150 | 660-1234 | 660-1318 | 660-1402 |
| 14.00 | 1 | 108 | 189 | 660-1067 | 660-1151 | 660-1235 | 660-1319 | 660-1403 |
| 14.50 | 2 | 114 | 212 | 660-1068 | 660-1152 | 660-1236 | 660-1320 | 660-1404 |
| 15.00 | 2 | 114 | 212 | 660-1069 | 660-1153 | 660-1237 | 660-1321 | 660-1405 |
| 15.50 | 2 | 120 | 218 | 660-1070 | 660-1154 | 660-1238 | 660-1322 | 660-1406 |
| 16.00 | 2 | 120 | 218 | 660-1071 | 660-1155 | 660-1239 | 660-1323 | 660-1407 |
| 16.50 | 2 | 125 | 223 | 660-1072 | 660-1156 | 660-1240 | 660-1324 | 660-1408 |
| 17.00 | 2 | 125 | 223 | 660-1073 | 660-1157 | 660-1241 | 660-1325 | 660-1409 |
| 17.50 | 2 | 130 | 228 | 660-1074 | 660-1158 | 660-1242 | 660-1326 | 660-1410 |
| 18.00 | 2 | 130 | 228 | 660-1075 | 660-1159 | 660-1243 | 660-1327 | 660-1411 |
| 18.50 | 2 | 135 | 233 | 660-1076 | 660-1160 | 660-1244 | 660-1328 | 660-1412 |
| 19.00 | 2 | 135 | 233 | 660-1077 | 660-1161 | 660-1245 | 660-1329 | 660-1413 |
| 19.50 | 2 | 140 | 238 | 660-1078 | 660-1162 | 660-1246 | 660-1330 | 660-1414 |
| 20.00 | 2 | 140 | 238 | 660-1079 | 660-1163 | 660-1247 | 660-1331 | 660-1415 |
| 20.50 | 2 | 145 | 243 | 660-1080 | 660-1164 | 660-1248 | 660-1332 | 660-1416 |
| 21.00 | 2 | 145 | 243 | 660-1081 | 660-1165 | 660-1249 | 660-1333 | 660-1417 |
| 21.50 | 2 | 150 | 248 | 660-1082 | 660-1166 | 660-1250 | 660-1334 | 660-1418 |
| 22.00 | 2 | 150 | 248 | 660-1083 | 660-1167 | 660-1251 | 660-1335 | 660-1419 |
| 22.50 | 2 | 155 | 253 | 660-1084 | 660-1168 | 660-1252 | 660-1336 | 660-1420 |
| 23.00 | 2 | 155 | 253 | 660-1085 | 660-1169 | 660-1253 | 660-1337 | 660-1421 |
| 23.50 | 3 | 155 | 276 | 660-1086 | 660-1170 | 660-1254 | 660-1338 | 660-1422 |
| 24.00 | 3 | 160 | 281 | 660-1087 | 660-1171 | 660-1255 | 660-1339 | 660-1423 |
| 24.50 | 3 | 160 | 281 | 660-1088 | 660-1172 | 660-1256 | 660-1340 | 660-1424 |
| 25.00 | 3 | 160 | 281 | 660-1089 | 660-1173 | 660-1257 | 660-1341 | 660-1425 |
| 25.50 | 3 | 165 | 286 | 660-1090 | 660-1174 | 660-1258 | 660-1342 | 660-1426 |
| 26.00 | 3 | 165 | 286 | 660-1091 | 660-1175 | 660-1259 | 660-1343 | 660-1427 |
| 26.50 | 3 | 165 | 286 | 660-1092 | 660-1176 | 660-1260 | 660-1344 | 660-1428 |
| 27.00 | 3 | 170 | 291 | 660-1093 | 660-1177 | 660-1261 | 660-1345 | 660-1429 |
| 27.50 | 3 | 170 | 291 | 660-1094 | 660-1178 | 660-1262 | 660-1346 | 660-1430 |
| 28.00 | 3 | 170 | 291 | 660-1095 | 660-1179 | 660-1263 | 660-1347 | 660-1431 |
| 28.50 | 3 | 175 | 296 | 660-1096 | 660-1180 | 660-1264 | 660-1348 | 660-1432 |
| 29.00 | 3 | 175 | 296 | 660-1097 | 660-1181 | 660-1265 | 660-1349 | 660-1433 |
| 29.50 | 3 | 175 | 296 | 660-1098 | 660-1182 | 660-1266 | 660-1350 | 660-1434 |
| 30.00 | 3 | 175 | 296 | 660-1099 | 660-1183 | 660-1267 | 660-1351 | 660-1435 |
| 31.00 | 3 | 180 | 301 | 660-1100 | 660-1184 | 660-1268 | 660-1352 | 660-1436 |
| 32.00 | 3 | 185 | 309 | 660-1101 | 660-1185 | 660-1269 | 660-1353 | 660-1437 |
| 32.00 | 4 | 185 | 334 | 660-1102 | 660-1186 | 660-1270 | 660-1354 | 660-1438 |
| 33.00 | 4 | 185 | 334 | 660-1103 | 660-1187 | 660-1271 | 660-1355 | 660-1439 |
| 34.00 | 4 | 190 | 339 | 660-1104 | 660-1188 | 660-1272 | 660-1356 | 660-1440 |
| 35.00 | 4 | 190 | 339 | 660-1105 | 660-1189 | 660-1273 | 660-1357 | 660-1441 |
| 36.00 | 4 | 195 | 344 | 660-1106 | 660-1190 | 660-1274 | 660-1358 | 660-1442 |
| 37.00 | 4 | 195 | 344 | 660-1107 | 660-1191 | 660-1275 | 660-1359 | 660-1443 |
| 38.00 | 4 | 200 | 349 | 660-1108 | 660-1192 | 660-1276 | 660-1360 | 660-1444 |
| 39.00 | 4 | 200 | 349 | 660-1109 | 660-1193 | 660-1277 | 660-1361 | 660-1445 |
| 40.00 | 4 | 200 | 349 | 660-1110 | 660-1194 | 660-1278 | 660-1362 | 660-1446 |
| 41.00 | 4 | 205 | 354 | 660-1111 | 660-1195 | 660-1279 | 660-1363 | 660-1447 |
| 42.00 | 4 | 205 | 354 | 660-1112 | 660-1196 | 660-1280 | 660-1364 | 660-1448 |
| 43.00 | 4 | 210 | 359 | 660-1113 | 660-1197 | 660-1281 | 660-1365 | 660-1449 |
| 44.00 | 4 | 210 | 359 | 660-1114 | 660-1198 | 660-1282 | 660-1366 | 660-1450 |
| 45.00 | 4 | 210 | 359 | 660-1115 | 660-1199 | 660-1283 | 660-1367 | 660-1451 |
| 46.00 | 4 | 215 | 364 | 660-1116 | 660-1200 | 660-1284 | 660-1368 | 660-1452 |
| 47.00 | 4 | 215 | 364 | 660-1117 | 660-1201 | 660-1285 | 660-1369 | 660-1453 |
| 48.00 | 4 | 220 | 369 | 660-1118 | 660-1202 | 660-1286 | 660-1370 | 660-1454 |
| 49.00 | 4 | 220 | 369 | 660-1119 | 660-1203 | 660-1287 | 660-1371 | 660-1455 |
| 50.00 | 4 | 220 | 369 | 660-1120 | 660-1204 | 660-1288 | 660-1372 | 660-1456 |
| 51.00 | 5 | 225 | 412 | 660-1121 | 660-1205 | 660-1289 | 660-1373 | 660-1457 |
| 52.00 | 5 | 225 | 412 | 660-1122 | 660-1206 | 660-1290 | 660-1374 | 660-1458 |
| 53.00 | 5 | 230 | 412 | 660-1123 | 660-1207 | 660-1291 | 660-1375 | 660-1459 |
| 54.00 | 5 | 230 | 417 | 660-1124 | 660-1208 | 660-1292 | 660-1376 | 660-1460 |
| 55.00 | 5 | 230 | 417 | 660-1125 | 660-1209 | 660-1293 | 660-1377 | 660-1461 |
| 56.00 | 5 | 230 | 417 | 660-1126 | 660-1210 | 660-1294 | 660-1378 | 660-1462 |
| 57.00 | 5 | 235 | 422 | 660-1127 | 660-1211 | 660-1295 | 660-1379 | 660-1463 |
| 58.00 | 5 | 235 | 422 | 660-1128 | 660-1212 | 660-1296 | 660-1380 | 660-1464 |
| 59.00 | 5 | 235 | 422 | 660-1129 | 660-1213 | 660-1297 | 660-1381 | 660-1465 |
| 60.00 | 5 | 235 | 422 | 660-1130 | 660-1214 | 660-1298 | 660-1382 | 660-1466 |
| 65.00 | 5 | 245 | 432 | 660-1131 | 660-1215 | 660-1299 | 660-1383 | 660-1467 |
| 70.00 | 5 | 250 | 437 | 660-1132 | 660-1216 | 660-1300 | 660-1384 | 660-1468 |
| 75.00 | 5 | 255 | 442 | 660-1133 | 660-1217 | 660-1301 | 660-1385 | 660-1469 |
| 80.00 | 6 | 260 | 514 | 660-1134 | 660-1218 | 660-1302 | 660-1386 | 660-1470 |
| 85.00 | 6 | 265 | 579 | 660-1135 | 660-1219 | 660-1303 | 660-1387 | 660-1471 |
| 90.00 | 6 | 270 | 524 | 660-1136 | 660-1220 | 660-1304 | 660-1388 | 660-1472 |
| 95.00 | 6 | 275 | 529 | 660-1137 | 660-1221 | 660-1305 | 660-1389 | 660-1473 |
| 100.00 | 6 | 280 | 534 | 660-1138 | 660-1222 | 660-1306 | 660-1390 | 660-1474 |
Application
Functions For Taper Shank Twist Drill:
The Morse Taper Twist Drill is primarily used for drilling holes in metal. Its Morse taper shank design provides better grip and stability, making drilling more precise and efficient.
Usage For Taper Shank Twist Drill:
1. Select the appropriate drill bit: Choose the Morse Taper Twist Drill that fits the desired hole diameter and metal type.
2. Secure the workpiece: Clamp the metal workpiece securely onto the workbench to prevent movement.
3. Adjust the depth: Adjust the drill bit depth according to the required drilling depth.
4. Apply proper pressure: Apply appropriate pressure to embed the drill bit into the metal surface, avoiding excessive force to prevent damage to the workpiece or drill bit.
5. Rotate for drilling: Rotate the Morse Taper Twist Drill slowly and evenly along the desired path until the desired hole is drilled.
6. Clean the work area: Regularly clean the work area and drill bit during drilling to ensure drilling quality and safety
Precautions For Taper Shank Twist Drill:
1. Wear personal protective equipment: Always wear safety goggles and gloves to ensure personal safety during use.
2. Check the drill bit regularly: Periodically check the condition of the drill bit to ensure sharpness and integrity, avoiding any impact on drilling efficiency.
3. Avoid overworking: Control the drilling pressure and speed to avoid overworking, which may damage the workpiece or affect drilling results.
4. Clean chips promptly: Clean drill chips promptly during drilling to maintain drilling quality and prolong drill bit life.
5. Store properly: After use, store the Morse Taper Twist Drill in a dry, ventilated place to avoid rubbing or colliding with other hard objects, thus extending its service life.
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More
Matching Items

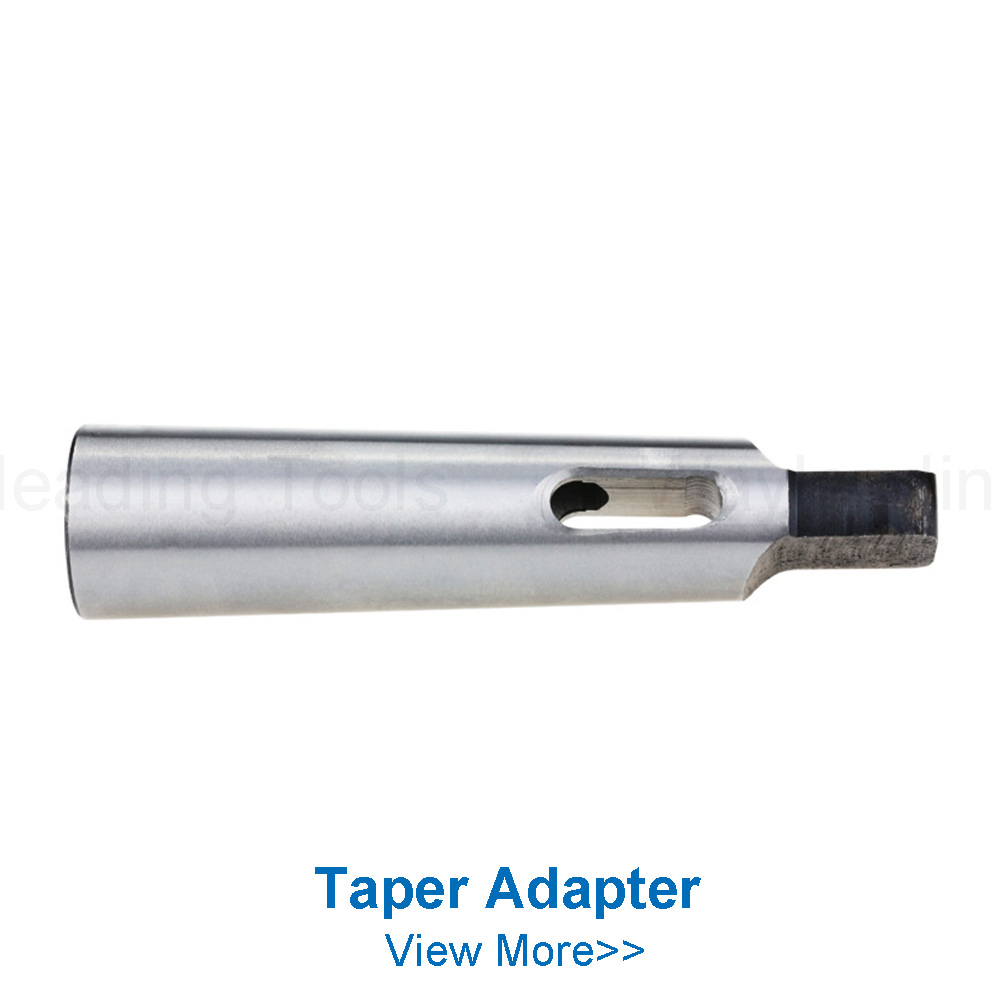

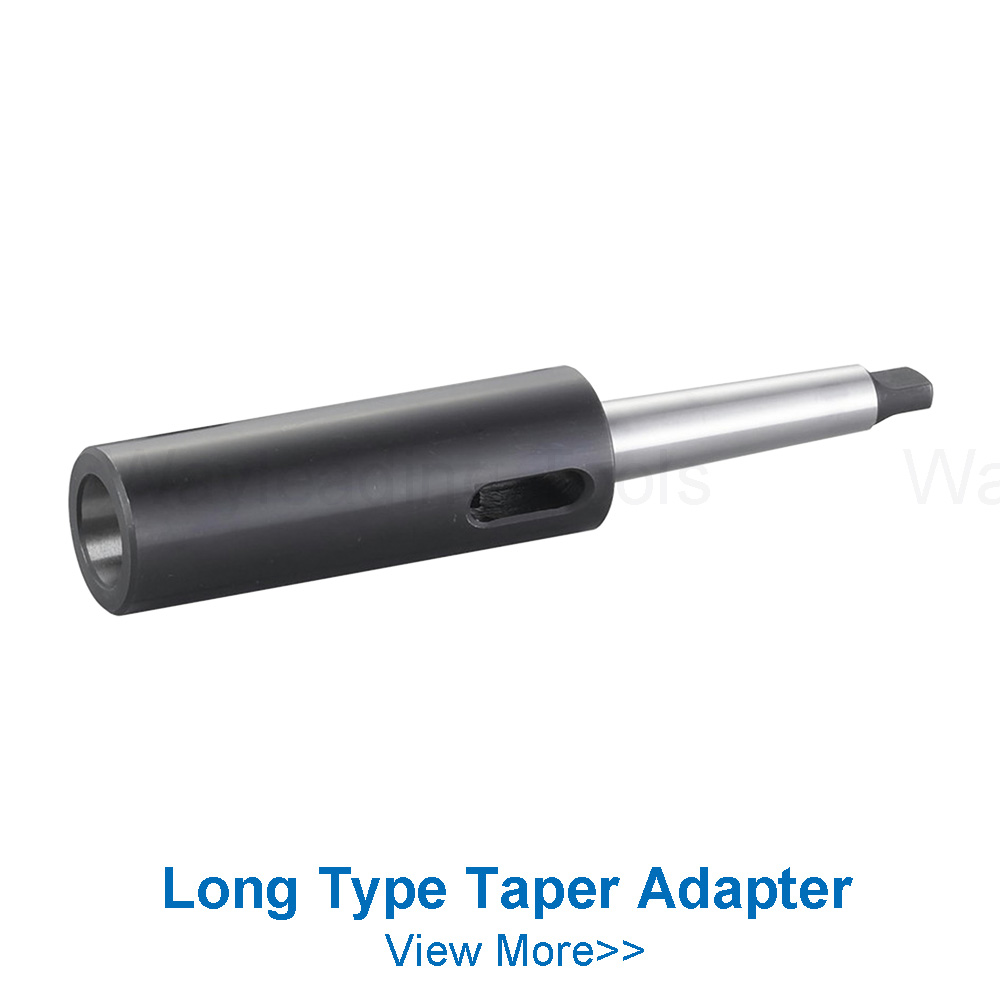

Matched Taper Adapter: MT Adapter
Solution
Technical Support:
We are delighted to be your solution provider for ER collet. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for ER collet. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More

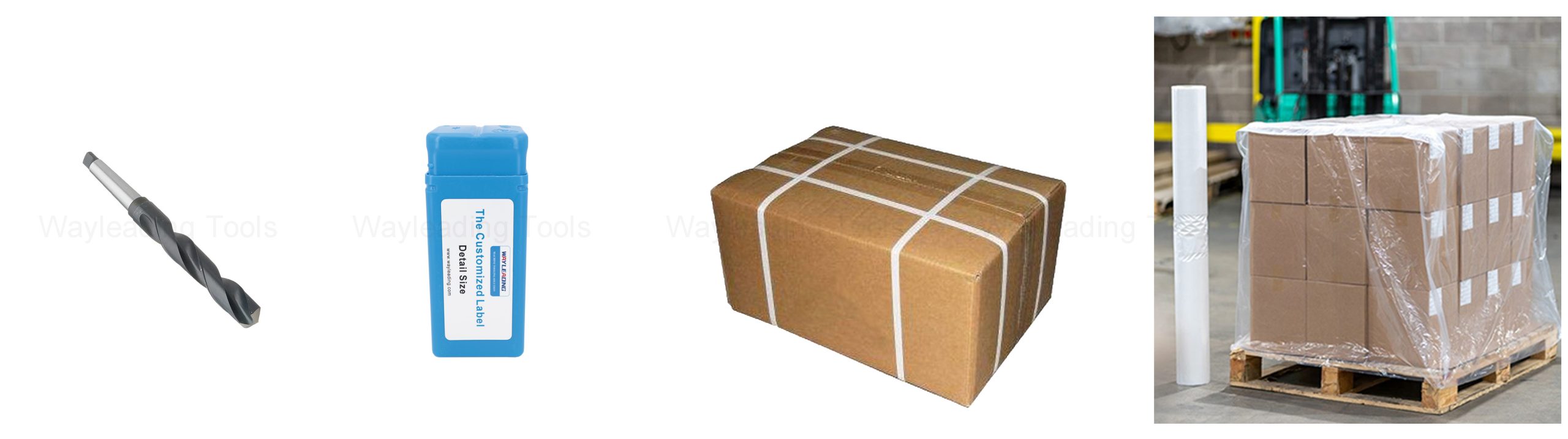

Packing
Packaged in a plastic box. Then packed in an outer box. It can be well protect the taper shank twist drill. Also customized packing is welcomed.
Please contact us for further information. To assist you more effectively, Kindly provide the following details:
● Specific product models and the approximate quantities you require.
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
