QA Grooving & Cut-Off Holder With Right And Left Hand
QA Grooving & Cut-Off Holder
We are pleased that you are interested in our indexable grooving and cut off holder. The Indexable QA Grooving & Cut-Off Holder is a specialized tool designed for machining tasks like grooving and cut-off operations. It features a replaceable insert system that enhances versatility and operational efficiency in various machining applications.
Metric Size
| MODEL | A | H | L | B | T | Insert | Right Hand | Left Hand |
| QA1616R/L03H | 16 | 16 | 100 | 3 | 20 | GTN-3 | 660-7092 | 660-7105 |
| QA2020R/L03K | 20 | 20 | 125 | 3 | 20 | GTN-3 | 660-7093 | 660-7106 |
| QA2525R/L03M | 25 | 25 | 150 | 3 | 20 | GTN-3 | 660-7094 | 660-7107 |
| QA3223R/L03P | 25 | 32 | 170 | 3 | 38 | GTN-3 | 660-7095 | 660-7108 |
| QA1616R/L04H | 16 | 16 | 100 | 4 | 20 | GTN-4 | 660-7096 | 660-7109 |
| QA2020R/L04K | 20 | 20 | 125 | 4 | 20 | GTN-4 | 660-7097 | 660-7110 |
| QA2525R/L04M | 25 | 25 | 150 | 4 | 20 | GTN-4 | 660-7098 | 660-7111 |
| QA3225R/L04P | 25 | 32 | 170 | 4 | 38 | GTN-4 | 660-7099 | 660-7112 |
| QA2020R/L05K | 20 | 20 | 125 | 5 | 20 | GTN-5 | 660-7100 | 660-7113 |
| QA2525R/L05M | 25 | 25 | 150 | 5 | 32 | GTN-5 | 660-7101 | 660-7114 |
| QA3225R/L05P | 25 | 32 | 170 | 5 | 32 | GTN-5 | 660-7102 | 660-7115 |
| QA2525R/L06M | 25 | 25 | 150 | 6 | 32 | GTN-6 | 660-7103 | 660-7116 |
| QA3225R/L06P | 25 | 32 | 170 | 6 | 48 | GTN-6 | 660-7104 | 660-7117 |
Inch Size
| MODEL | A | H | L | B | T | Insert | Right Hand | Left Hand |
| QA08R/L-20B | 1/2 | 1/2 | 4.5 | .079 | .79 | GTN-2 | 660-7118 | 660-7130 |
| QA10R/L-20B | 5/8 | 5/8 | 4.5 | .079 | .79 | GTN-2 | 660-7119 | 660-7131 |
| QA12R/L-20C | 3/4 | 3/4 | 5.0 | .079 | .79 | GTN-2 | 660-7120 | 660-7132 |
| QA12R/L-30C | 3/4 | 3/4 | 5.0 | .118 | .79 | GTN-3 | 660-7121 | 660-7133 |
| QA16R/L-30D | 1.0 | 1.0 | 6.0 | .118 | .79 | GTN-3 | 660-7122 | 660-7134 |
| QA12R/L-40C | 3/4 | 3/4 | 5.0 | .157 | .98 | GTN-4 | 660-7123 | 660-7135 |
| QA16R/L-40D | 1.0 | 1.0 | 6.0 | .157 | .98 | GTN-4 | 660-7124 | 660-7136 |
| QA20R/L-40D | 1.25 | 1.25 | 6.0 | .157 | .98 | GTN-4 | 660-7125 | 660-7137 |
| QA16R/L-50D | 1.0 | 1.0 | 6.0 | .197 | 1.26 | GTN-5 | 660-7126 | 660-7138 |
| QA20R/L-50D | 1.25 | 1.25 | 6.0 | .197 | 1.26 | GTN-5 | 660-7127 | 660-7139 |
| QA16R/L-60D | 1.0 | 1.0 | 6.0 | .236 | 1.26 | GTN-6 | 660-7128 | 660-7140 |
| QA20R/L-60D | 1.25 | 1.25 | 6.0 | .236 | 1.26 | GTN-6 | 660-7129 | 660-7141 |
Application
Functions For Indexable Grooving And Cut Off Holder:
The primary function of the Indexable QA Grooving & Cut-Off Holder is to facilitate precise grooving and cut-off operations in metalworking. It securely holds indexable inserts that are designed for specific cutting tasks, allowing for clean and accurate machining of workpieces.
Usage For Indexable Grooving and Cut Off Holder:
1. Insert Installation: Select the appropriate indexable inserts based on the groove width and cutting requirements. Install the inserts securely into the holder using the provided screws or clamping mechanisms.
2. Position Adjustment: Adjust the position of the holder on the tool post or turret to align the cutting edge of the insert with the workpiece. 4. Ensure the insert is properly seated and oriented for effective cutting.
3. Tool Alignment: Verify that the tool holder is aligned correctly relative to the workpiece to achieve the desired groove depth and width.
4. Cutting Operations: Engage the machine to perform grooving or cut-off operations. Monitor the cutting process to ensure smooth chip evacuation and consistent cutting performance.
Precautions For Indexable Grooving And Cut Off Holder:
1. Insert Selection: Choose inserts with appropriate geometry and cutting parameters suitable for the material being machined to achieve optimal 2. tool life and surface finish.
2. Insert Securement: Before operation, double-check that inserts are firmly secured in the holder to prevent insert displacement or tool failure during machining.
3. Safety Measures: Always wear safety goggles and gloves when handling inserts or performing setup tasks to protect against potential tooling hazards.
4. Tool Maintenance: Regularly inspect the condition of inserts and the tool holder for signs of wear or damage. Replace worn inserts promptly to maintain machining accuracy and efficiency.
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More

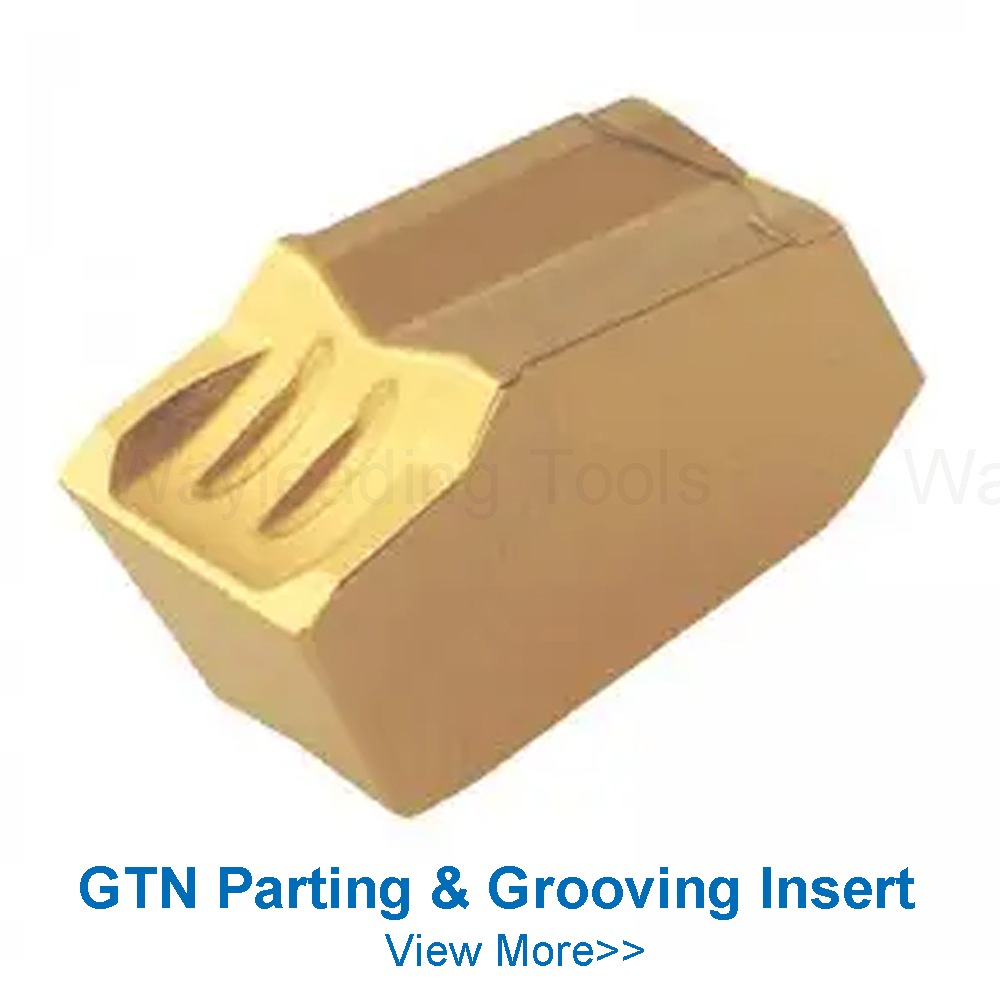

Matching Items
Solution
Technical Support:
We are delighted to be your solution provider for ER collet. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for ER collet. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More
Packing

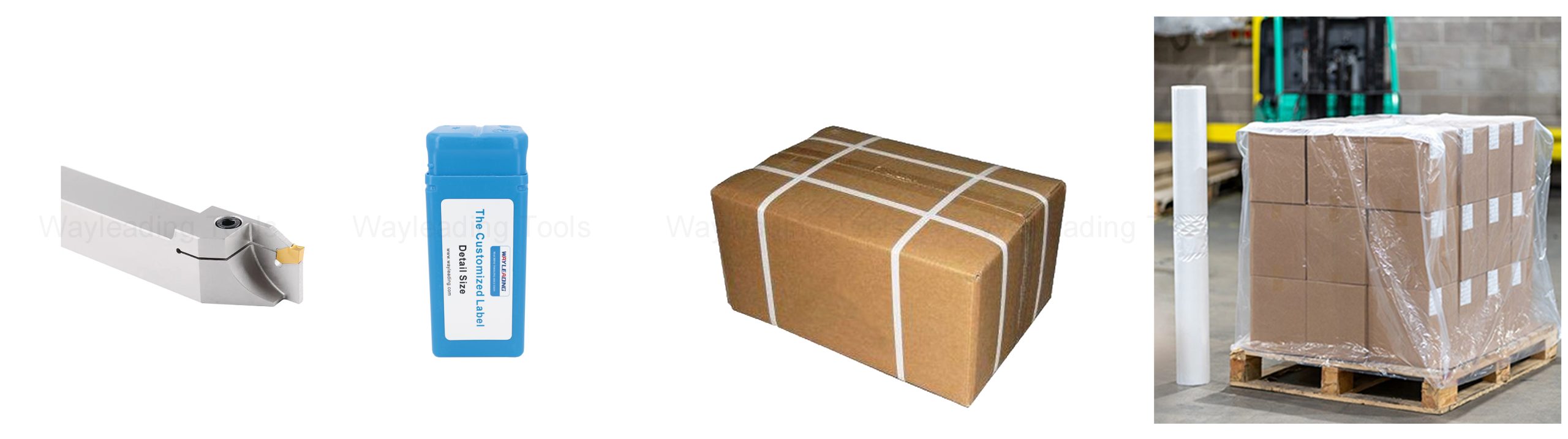

Packaged in a plastic box. Then packed in an outer box. It can be well protecting the indexable grooving and cut off holder. Also customized packing is welcomed.
