R8 Drill Chuck Arbor For Milling Machine
R8 Drill Chuck Arbor
● Made of precision ground, high grade tool steel
● Works great on any machine tool with that takes R8 tooling
| Size | D(mm) | L(mm) | Order No. |
| R8-J0 | 6.35 | 117 | 660-8676 |
| R8-J1 | 9.754 | 122 | 660-8677 |
| R8-J2S | 13.94 | 125 | 660-8678 |
| R8-J2 | 14.199 | 128 | 660-8679 |
| R8-J33 | 15.85 | 132 | 660-8680 |
| R8-J6 | 17.17 | 132 | 660-8681 |
| R8-J3 | 20.599 | 137 | 660-8682 |
| R8-J4 | 28.55 | 148 | 660-8683 |
| R8-J5 | 35.89 | 154 | 660-8684 |
| R8-B6 | 6.35 | 118.5 | 660-8685 |
| R8-B10 | 10.094 | 124 | 660-8686 |
| R8-B12 | 12.065 | 128 | 660-8687 |
| R8-B16 | 15.733 | 135 | 660-8688 |
| R8-B18 | 17.78 | 143 | 660-8689 |
| R8-B22 | 21.793 | 152 | 660-8690 |
| R8-B24 | 23.825 | 162 | 660-8691 |
Precision Milling

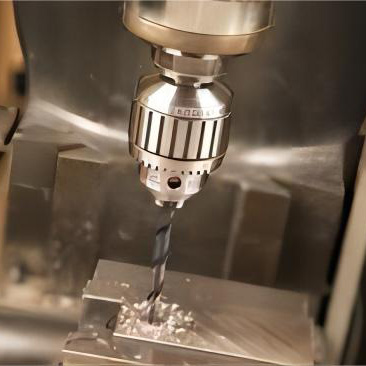

The R8 Drill Chuck Arbor has a wide array of applications in the field of mechanical machining, particularly in precision milling operations. Designed to securely connect drill bits or cutting tools to the R8 spindle of a milling machine, it ensures accuracy and stability in machining processes.
Metalworking Versatility
In metalworking, the R8 Drill Chuck Arbor is frequently used for precise drilling, reaming, and light milling tasks. It accommodates various sizes of drill chucks, allowing machine operators to swiftly switch between drill bits of different diameters based on the requirements of the workpiece. This adaptability is crucial for producing diversified parts, such as in the manufacturing of machinery components, automotive parts, or aerospace elements.
Woodworking Precision
In woodworking, the R8 Arbor is equally beneficial. It’s utilized for high-precision drilling operations, such as when precise hole positioning is needed in furniture making or wooden constructions. Its high precision and stability help woodworkers reduce machining errors and enhance efficiency.
Educational Tool
Additionally, the R8 Drill Chuck Arbor finds use in educational and training settings. In engineering and technical education institutions, students employ this arbor to learn basic milling and drilling techniques. Its user-friendly nature makes it an ideal choice for instructional purposes.
The R8 Drill Chuck Arbor, with its versatility, ease of installation and replacement, and capability to provide precise and stable machining, is an indispensable tool in various machining environments. Whether in high-demand industrial production or in detailed craftsmanship, the R8 Drill Chuck Arbor delivers exceptional performance and reliability.
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery
Package Content
1 x R8 Drill Chuck Arbor
1 x Protective Case
