» R8 Square Collet With Inch and Metric Size
R8 Square Collet
● Material: 65Mn
● Hardness: Clamping part HRC: 55-60, elastic part: HRC40-45
● This unit is applicable to all sorts of milling machines, which spindle taper hole is R8, such as X6325, X5325 etc.
Metric
| Size | Economy | Premium |
| 3mm | 660-8030 | 660-8045 |
| 4mm | 660-8031 | 660-8046 |
| 5mm | 660-8032 | 660-8047 |
| 5.5mm | 660-8033 | 660-8048 |
| 6mm | 660-8034 | 660-8049 |
| 7mm | 660-8035 | 660-8050 |
| 8mm | 660-8036 | 660-8051 |
| 9mm | 660-8037 | 660-8052 |
| 9.5mm | 660-8038 | 660-8053 |
| 10mm | 660-8039 | 660-8054 |
| 11mm | 660-8040 | 660-8055 |
| 12mm | 660-8041 | 660-8056 |
| 13mm | 660-8042 | 660-8057 |
| 13.5mm | 660-8043 | 660-8058 |
| 14mm | 660-8044 | 660-8059 |
Inch
| Size | Economy | Premium |
| 1/8” | 660-8060 | 660-8074 |
| 5/32” | 660-8061 | 660-8075 |
| 3/16” | 660-8062 | 660-8076 |
| 1/4” | 660-8063 | 660-8077 |
| 9/32” | 660-8064 | 660-8078 |
| 5/16” | 660-8065 | 660-8079 |
| 11/32” | 660-8066 | 660-8080 |
| 3/8” | 660-8067 | 660-8081 |
| 13/32” | 660-8068 | 660-8082 |
| 7/16” | 660-8069 | 660-8083 |
| 15/32” | 660-8070 | 660-8084 |
| 1/2" | 660-8071 | 660-8085 |
| 17/32” | 660-8072 | 660-8086 |
| 9/16” | 660-8073 | 660-8087 |
Precision Machining for Non-Cylindrical Parts

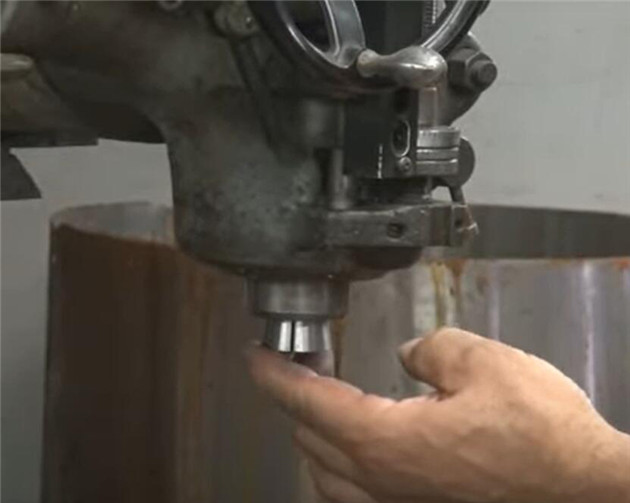

The R8 square collet is a specialized tooling accessory primarily used in milling operations, offering a unique advantage for machining square-shaped or non-cylindrical components. Its distinct feature lies in the square-shaped inner cavity, specifically designed to grip and secure square or rectangular tool shanks and workpieces. This design significantly improves the holding strength and accuracy, which is vital for precision machining.
Critical Role in High Precision Industries
In industries where precision is paramount, such as aerospace, automotive, and die-making, the R8 square collet plays a crucial role. Its ability to maintain a firm grip on square components ensures that these parts are machined with high precision, which is essential for components with strict tolerance requirements. This precision is particularly beneficial when creating intricate parts or when engaging in operations that require high levels of accuracy, like slotting or keyway cutting.
Versatility in Custom Fabrication
Moreover, the R8 square collet finds its application in the realm of custom fabrication. Here, its versatility is appreciated when dealing with non-standard component shapes. Custom fabricators often encounter unique designs and materials, and the R8 square collet’s ability to securely hold various square-shaped materials makes it an invaluable tool in these scenarios.
Educational Use in Machining Courses
In educational settings, such as technical schools and universities, the R8 square collet is often introduced to students in machining courses. Its use helps them understand the intricacies of working with different shapes and materials, preparing them for a wide range of machining tasks in their future careers.
The R8 square collet, with its specialized design and robust construction, is thus an essential tool in modern machining. Its applications extend across various industries, enabling precise and efficient machining of square or rectangular parts, enhancing both productivity and accuracy in these demanding fields.
Advantage Of Wayleading
• Efficient and Reliable Service;
• Good Quality;
• Competitive Pricing;
• OEM, ODM, OBM;
• Extensive Variety
• Fast & Reliable Delivery
Package Content
1 x R8 Square collet
1 x Protective Case
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
