» SCFC Indexable Boring Bar With Right And Left Hand
SCFC Indexable Boring Bar
We are pleased that you are interested in our indexable boring bar. The SCFC Indexable Boring Bar is a specialized tool used primarily for boring operations in machining, designed to achieve precise internal diameters and surface finishes with interchangeable cutting inserts.
Without Coolant Hole
| MODEL | D | F | L | d | Insert | Right Hand | Left Hand |
| S10K-SCFCR/L06 | 10 | 7 | 125 | 13 | CCMT0602 | 660-7050 | 660-7061 |
| S12M-SCFCR/L06 | 12 | 9 | 150 | 16 | CCMT0602 | 660-7051 | 660-7062 |
| S16R-SCFCR/L09 | 16 | 11 | 200 | 20 | CCMT09T3 | 660-7052 | 660-7063 |
| S20S-SCFCR/L09 | 20 | 13 | 250 | 25 | CCMT09T3 | 660-7053 | 660-7064 |
| S25T-SCFCR/L12 | 25 | 17 | 300 | 32 | CCMT1204 | 660-7054 | 660-7065 |
| S32U-SCFCR/L12 | 32 | 22 | 350 | 40 | CCMT1204 | 660-7055 | 660-7066 |
| S40U-SCFCR/L12 | 40 | 27 | 350 | 50 | CCMT1204 | 660-7056 | 660-7067 |
| S06M-SCFCR/L2 | 3/8 | 1/4 | 6.0 | 1/2 | CCMT21.51 | 660-7057 | 660-7068 |
| S08Q-SCFCR/L2 | 1/2 | 5/16 | 7.0 | 5/8 | CCMT21.51 | 660-7058 | 660-7069 |
| S10R-SCFCR/L3 | 5/8 | 13/32 | 8.0 | 13/16 | CCMT32.52 | 660-7059 | 660-7070 |
| S12S-SCFCR/L3 | 3/4 | 1/2 | 10 | 1 | CCMT32.52 | 660-7060 | 660-7071 |
With Coolant Hole
| MODEL | D | F | L | d | Insert | Right Hand | Left Hand |
| A12K-ACFCR/L06 | 12 | 9 | 125 | 16 | CCMT0602 | 660-7072 | 660-7082 |
| A16M-ACFCR/L06 | 16 | 11 | 150 | 20 | CCMT09T3 | 660-7073 | 660-7083 |
| A20Q-ACFCR/L09 | 20 | 13 | 180 | 25 | CCMT09T3 | 660-7074 | 660-7084 |
| A25R-ACFCR/L09 | 25 | 17 | 200 | 32 | CCMT1204 | 660-7075 | 660-7085 |
| A32S-ACFCR/L12 | 32 | 22 | 250 | 40 | CCMT1204 | 660-7076 | 660-7086 |
| A40T-ACFCR/L12 | 40 | 27 | 300 | 50 | CCMT1204 | 660-7077 | 660-7087 |
| A06J-ACFCR/L12 | 3/8 | 1/4 | 4.5 | 1/2 | CCMT21.51 | 660-7078 | 660-7088 |
| A08M-ACFCR/L2 | 1/2 | 5/16 | 6.0 | 5/8 | CCMT21.51 | 660-7079 | 660-7089 |
| A10Q-ACFCR/L3 | 5/8 | 13/32 | 7.0 | 13/16 | CCMT32.52 | 660-7080 | 660-7090 |
| A12R-ACFCR/L3 | 3/4 | 1/2 | 8.0 | 1 | CCMT32.52 | 660-7081 | 660-7091 |
Application
Functions For Indexable Boring Bar:
The main function of the SCFC Indexable Boring Bar is to enlarge or refine existing holes in workpieces through boring. It accommodates indexable inserts that perform cutting, allowing for controlled material removal to achieve accurate internal dimensions and smooth finishes.
Usage For Indexable Boring Bar:
1. Insert Installation: Select the appropriate indexable inserts based on the diameter and depth of the hole to be bored. Install the inserts securely into the boring bar using the provided clamping mechanism or screws.
2. Tool Setup: Mount the SCFC Indexable Boring Bar onto the tool post of the lathe or boring machine. Ensure the boring bar is aligned properly with the workpiece and positioned at the desired depth for the bore operation.
3. Cutting Parameters: Set the cutting parameters such as feed rate, cutting speed, and depth of cut according to the material being machined and the specific requirements of the bore diameter.
4. Boring Operation: Engage the machine to start the boring operation. Monitor the process to ensure the boring bar advances smoothly and the inserts cut effectively without chatter or excessive vibration.
Precautions For Indexable Boring Bar:
1. Insert Selection: Choose inserts with appropriate geometry and cutting edge preparation suitable for the material hardness and bore diameter accuracy required.
2. Tool Stability: Verify that the boring bar is securely clamped in place to prevent movement during operation, which could lead to dimensional inaccuracies or tool damage.
3. Safety Considerations: Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when handling inserts or operating the machine to protect against potential cutting tool hazards.
4. Tool Maintenance: Regularly inspect inserts and the boring bar for wear or damage. Replace inserts promptly when they become dull or damaged to maintain optimal cutting performance and dimensional accuracy.
Advantage
Efficient and Reliable Service
Wayleading Tools, your one-stop supplier for cutting tools, machinery accessories, measuring tools. As an integrated industrial powerhouse, we take immense pride in our Efficient and Reliable Service, tailored to meet the diverse needs of our esteemed clientele. Click Here For More
Good Quality
At Wayleading Tools, our commitment to Good Quality sets us apart as a formidable force in the industry. As an integrated powerhouse, we offer a diverse range of cutting-edge industrial solutions, providing you with the finest cutting tools, precise measuring instruments, and reliable machine tool accessories.Click Here For More
Competitive Pricing
Welcome to Wayleading Tools, your one-stop supplier for cutting tools, measuring tools, machinery accessories. We take immense pride in offering Competitive Pricing as one of our core advantages. Click Here For More
OEM, ODM, OBM
At Wayleading Tools, we take pride in offering comprehensive OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer), and OBM (Own Brand Manufacturer) services, catering to your unique needs and ideas.Click Here For More
Extensive Variety
Welcome to Wayleading Tools, your all-in-one destination for cutting-edge industrial solutions, where we specialize in cutting tools, measuring instruments, and machine tool accessories. Our core advantage lies in offering an Extensive Variety of products, tailored to meet the diverse needs of our esteemed clientele.Click Here For More
Matching Items

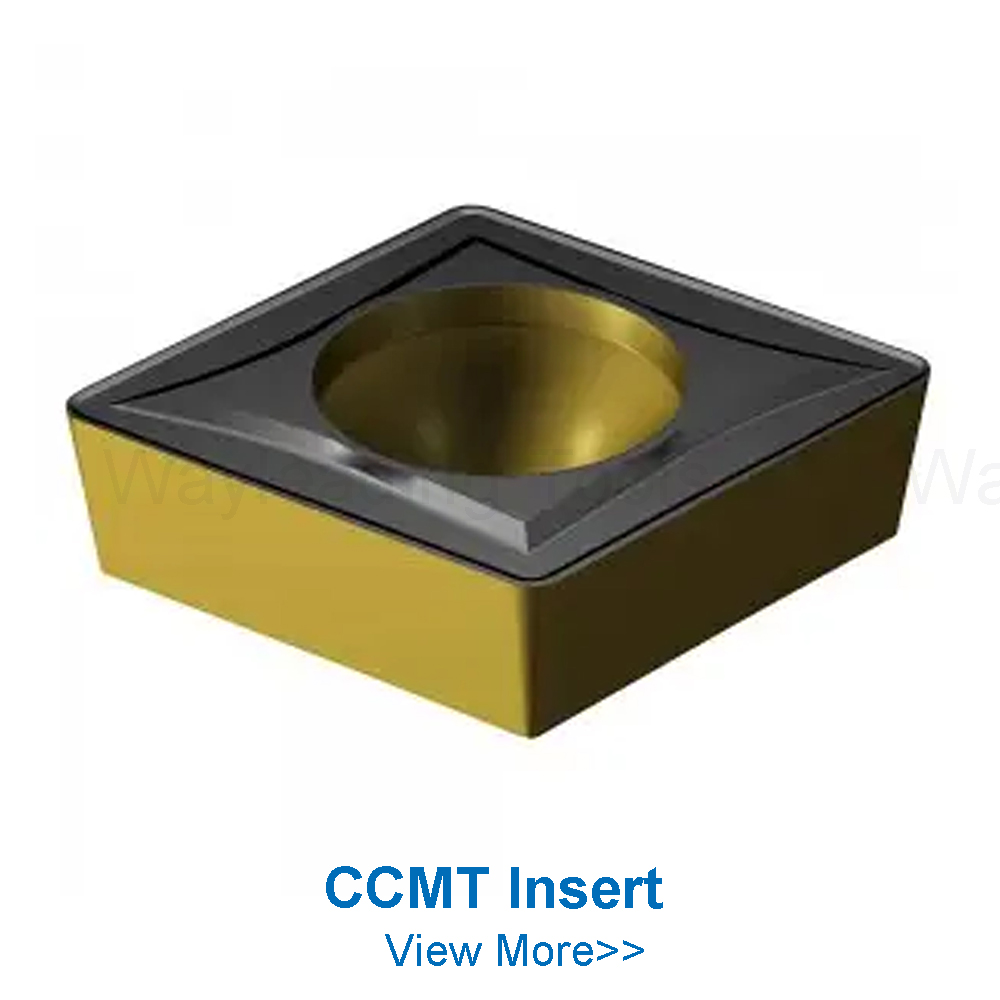

Matched Insert:CCMT
Solution
Technical Support:
We are delighted to be your solution provider for ER collet. We are happy to offer you technical support. Whether it's during your sales process or your customers' usage, upon receiving your technical inquiries, we will promptly address your questions. We promise to reply within 24 hours at the latest, providing you with technical solutions.Click Here For More
Customized Services:
We are pleased to offer you customized services for ER collet. We can provide OEM services, manufacturing products according to your drawings; OBM services, branding our products with your logo; and ODM services, adapting our products according to your design requirements. Whatever customized service you require, we promise to provide you with professional customization solutions.Click Here For More
Training Services:
Whether you are the purchaser of our products or an end-user, we are more than happy to provide training service to ensure you use the products you purchased from us correctly. Our training materials come in electronic documents, videos, and online meetings, allowing you to choose the most convenient option. From your request for training to our provision of training solutions, we promise to complete the entire process within 3 days Click Here For More
After-sales Service:
Our products come with a 6-month after-sales service period. During this period, any problems not intentionally caused will be replaced or repaired free of charge. We provide round-the-clock customer service support, handling any usage queries or complaints, ensuring you have a pleasant purchasing experience. Click Here For More
Solution Design:
By providing your machining product blueprints (or assisting in creating 3D drawings if unavailable), material specifications, and mechanical details used, our product team will tailor the most suitable recommendations for cutting tools, mechanical accessories, and measuring instruments, and design comprehensive machining solutions for you. Click Here For More
Packing

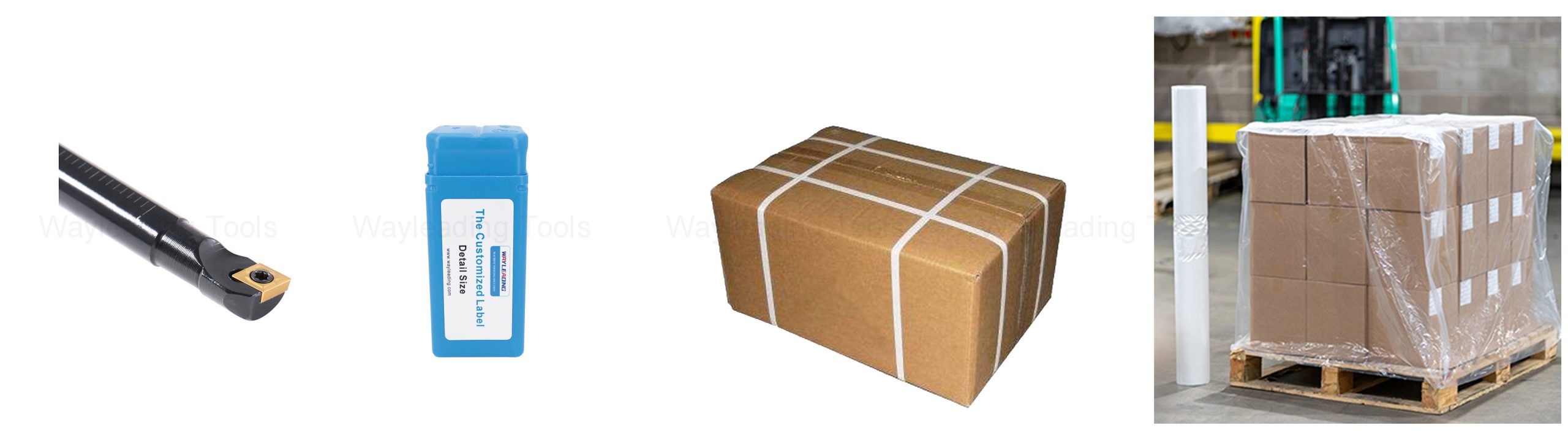

Packaged in a plastic box. Then packed in an outer box. It can be well protecting the indexable boring bar. Also customized packing is welcomed.
● Do you require OEM, OBM, ODM or neutral packing for your products?
● Your company name and contact information for prompt and accurate feedback.
Additional, we invite you to request samples for quality testing.
